5x20mm保险管座子J0PTF0015P规格参数

2025-02-14 17:24:56 admin

集电通J0PTF0015P透明座子主要运用于5x20mm保险管，额定电流为6.3A，额定电压为250V，工作功耗为1.5W，绝缘电阻不小于100mΩ，介电强度不小于300Vac每秒。主要材料为PA66外壳、H62镀镍引脚，聚乙烯盖子。装配方式为波峰焊（＜10s/260℃）。包装方式为袋装，包装方式为500pcs/袋。适用于PCB板的电路保护。（J0PTF0015P透明座子）

保险丝

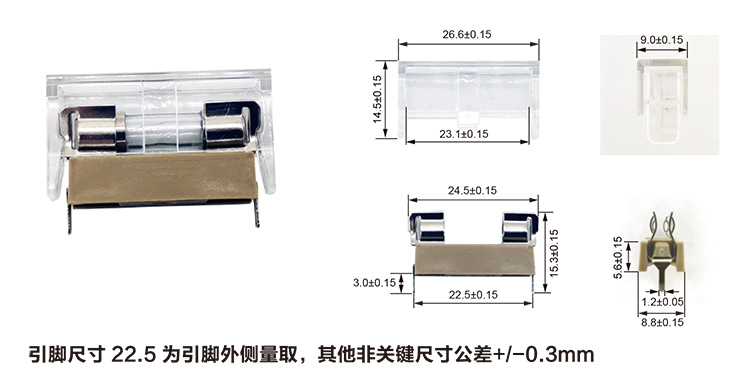

(J0PTF0015P透明座子外型图及尺寸)

标签: J0PTF0015P 保险管座子
