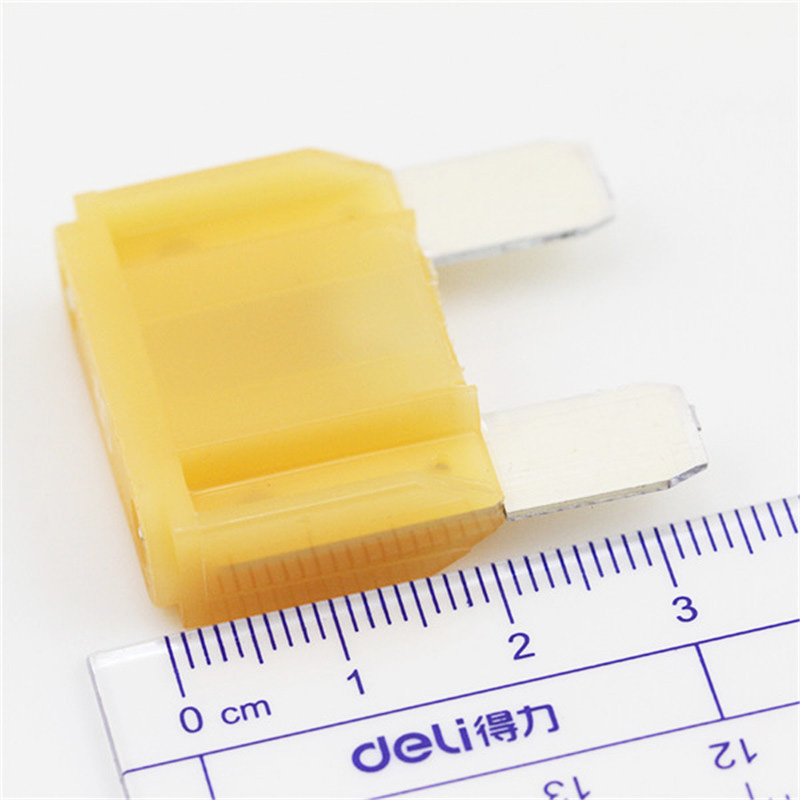

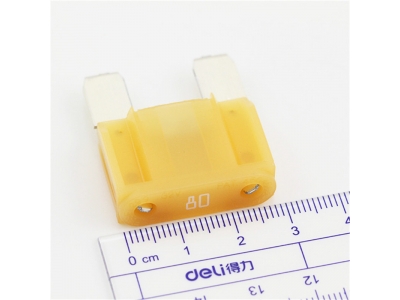

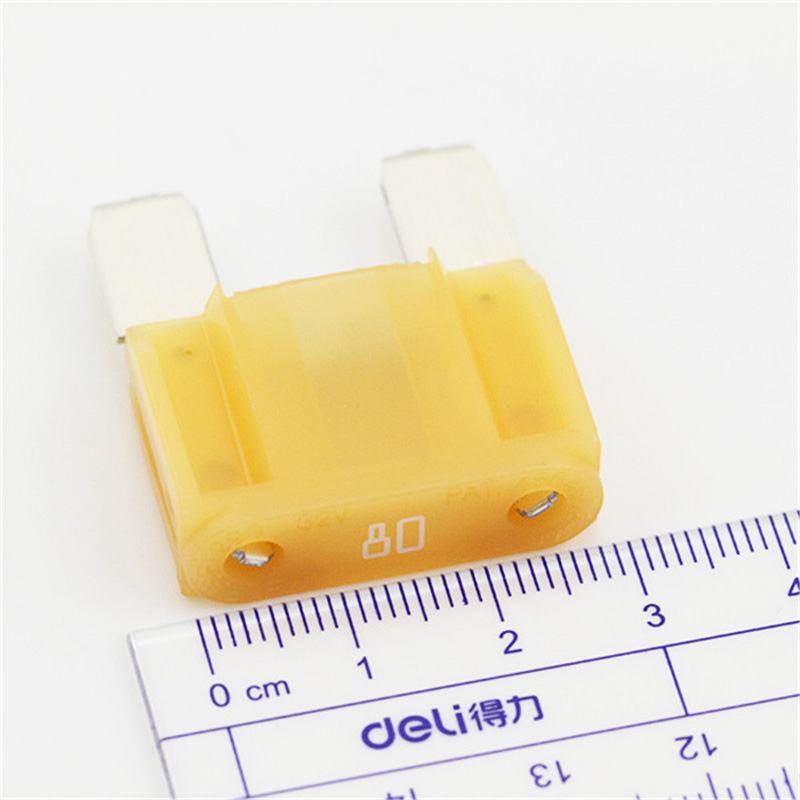

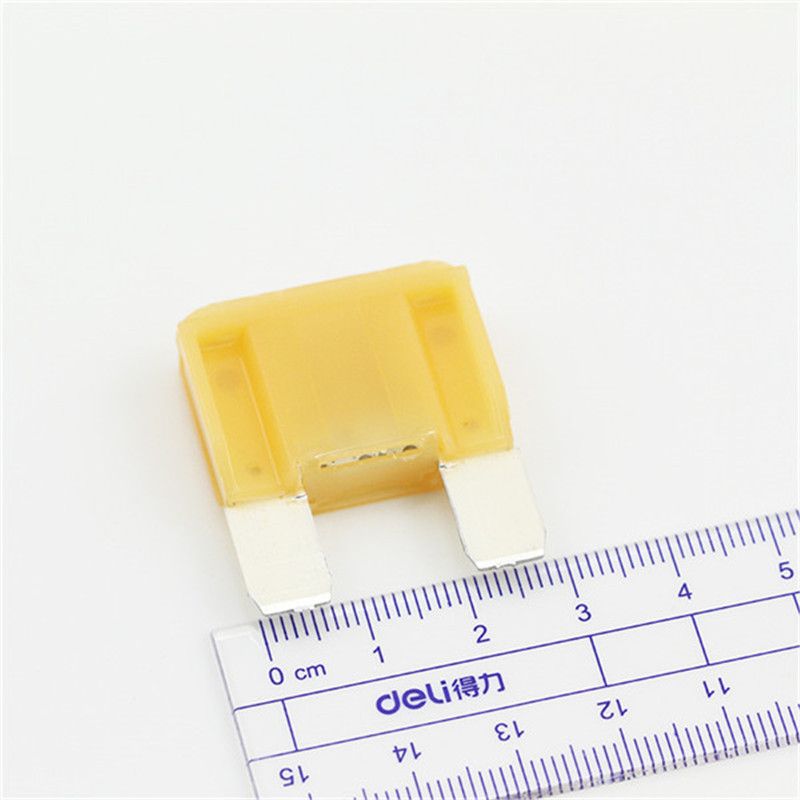

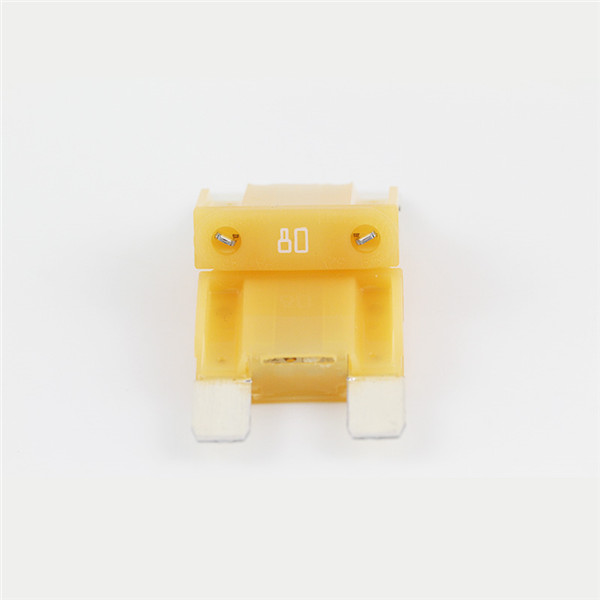

Littelfuse 0299 Series Car Fuse

快赢v8With "Diffusion Pill Technology'" the MAXI® Fuse provides excellent time delay characteristics and low heat dissipation. Designed and patented by Littelfuse, the MAXI fuse is ideal for motor powered applications which have large inrush currents.

Brand： Littelfuse
Classification： Car Fuse
Voltage： 32V
Current： 20~80A

Detail Specification

Details

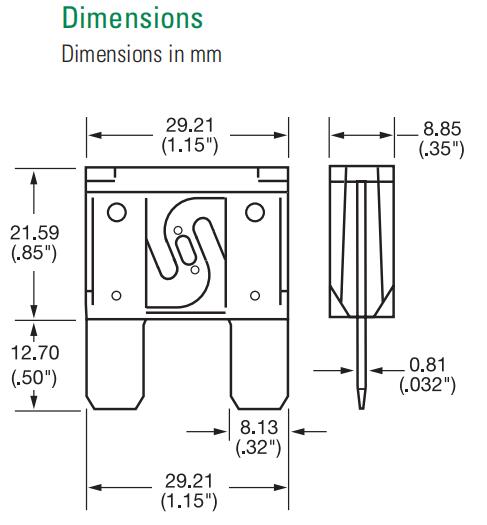

Dimension

Interrupting Rating:1000A @ 32 VDC

Voltage Rating: 32VDC

*Component Level Temperature Range：-40 ̊C to +125 ̊C

**System Level Temperature Range: -40 ̊C to +105 ̊C

Part Number	Current Rating (A)	Test. Cable Size(mm²)	Typ. Voltage Drop(mV)	Cold Resistance (mΩ)	I²t(A²s)
0299020._	20	4	76	3.10	1100
0299025._	25	4	75	2.39	2100
0299030._	30	4	77	1.95	4100
0299035._	35	4	75	1.71	6000
0299040._	40	4	75	1.42	8500
0299050._	50	6	73	1.10	11300
0299060._	60	6	77	0.89	15300
0299070._	70	10	61	0.64	21200
0299080._	80	10	62	0.54	43600
