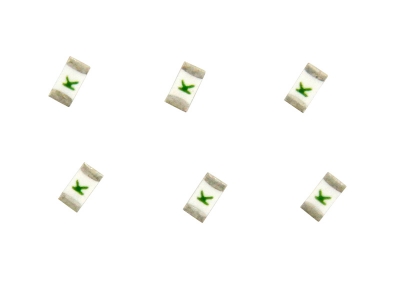

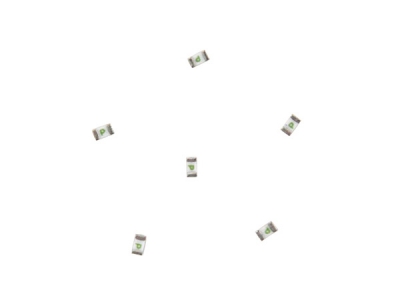

JDTfuse0402 Series Fuse

DetailspecificationNO.1DetailspecificationNO.2PartNo.RatedVoltageDCRatedCurrent(A)InterruptingRating*Resistance(Ohms)**Typ.TypicalMeltI²t***DC(A²S)JFC0402-0200FS32V200mA35A17500.0006JFC0402-

Brand： JDT fuse
Classification： Disposable fuse
Voltage： 32V
Current： 0.2-4A

Detail Specification

JFC0402TS.pdf

Part Number	Rated Current (A)	Rated Voltage DC	Interrupting Rating	Resistance(mohms)**Typ	Typical Melt I2t**(A2sec)
JFC0402-0200FS	0.20	32V	35A@32V DC	2250	0.0006
JFC0402-0250FS	0.25			1500	0.0010
JFC0402-0315FS	0.315			1000	0.0014
JFC0402-0375FS	0.375			780	0.0018
JFC0402-0500FS	0.50			500	0.0043
JFC0402-0750FS	0.75			220	0.011
JFC0402-1100FS	1.0			130	0.04
JFC0402-1150FS	1.5			78	0.06
JFC0402-1200FS	2.0			40	0.13
JFC0402-1250FS	2.5			24	0.20
JFC0402-1300FS	3.0			18	0.33
JFC0402-1350FS	3.5			14	0.45
JFC0402-1400FS	4.0			11	0.60
