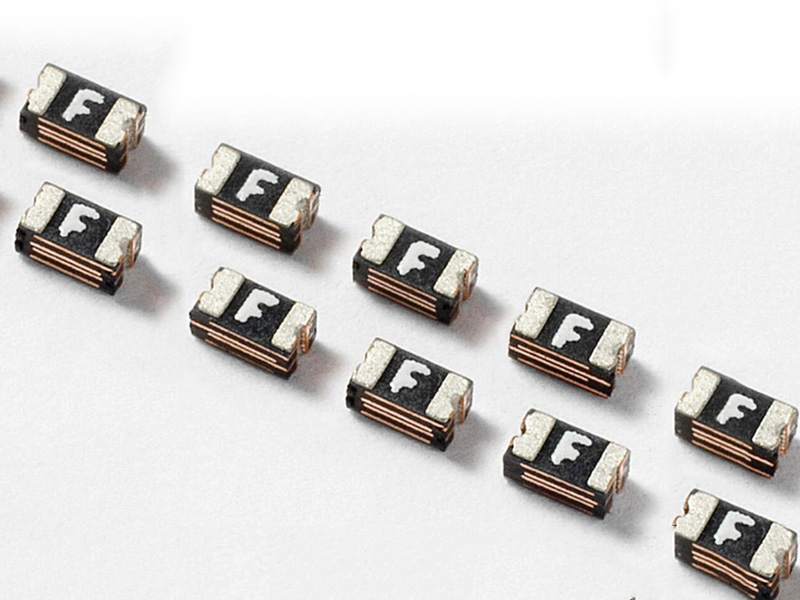

Littelfuse 0603L Series PTC

The 0603L Series PTC provides surface mount
overcurrent protection for applications where space is at a premium and resettable protection is desired.

  • Brand： Littelfuse
  • Classification： SMD Fuse
  • Voltage： 6V,9V,15V,24V
  • Current： 6V,9V,15V,24V

0603L Series Electrical Characteristics

Part Number
Marking
Ihold
(A)
Itrip
(A)
Vmax
(Vdc)
Imax
(A)
Pdtyp.
(W)
Maximum Time
To Trip
Resistance
Current
(A)
Time
(Sec.)
Rmin
(Ω)
R1max
(Ω)
0603L004
-
0.04
0.12
24
20
0.5
0.20
1.00
4.00
40.00
0603L010
C
0.10
0.30
15
40
0.5
0.50
1.00
0.900
6.000
0603L020
H
0.20
0.50
9
40
0.5
1.00
0.60
0.550
3.500
0603L025
I
0.25
0.55
9
40
0.5
8.00
0.08
0.500
3.000
0603L035
F
0.35
0.75
6
40
0.5
8.00
0.10
0.200
1.000
0603L050
J
0.50
1.00
6
40
0.5
8.00
0.10
0.100
0.680

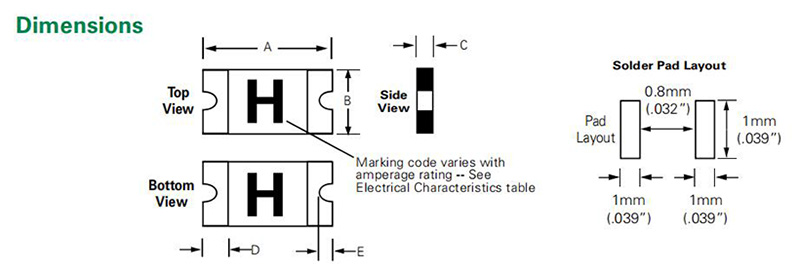

JDTFUSE


Part Number
A
B
C
D
E
Inch
mm
Inch
mm
Inch
mm
Inch
mm
Inch
mm
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
0603L001/60
.055
.071
1.40
1.80
.024
.039
0.60
1.00
.016
.039
0.40
1.00
.006
.020
0.15
0.50
-
.016
-
0.40
0603L002/60
.055
.071
1.40
1.80
.024
.039
0.60
1.00
.016
.039
0.40
1.00
.006
.020
0.15
0.50
-
.016
-
0.40
0603L003/36
.055
.071
1.40
1.80
.024
.039
0.60
1.00
.016
.039
0.40
1.00
.006
.020
0.15
0.50
-
.016
-
0.40
0603L004
.055
.071
1.40
1.80
.024
.039
0.60
1.00
.016
.030
0.40
0.75
.006
.020
0.15
0.50
.004
.016
0.10
0.40
0603L010
.055
.071
1.40
1.80
.024
.039
0.60
1.00
.016
.030
0.40
0.75
.006
.020
0.15
0.50
.004
.016
0.10
0.40
0603L020
.055
.071
1.40
1.80
.024
.039
0.60
1.00
.016
.030
0.40
0.75
.006
.020
0.15
0.50
.004
.016
0.10
0.40
0603L025
.055
.071
1.40
1.80
.024
.039
0.60
1.00
.016
.030
0.40

0.75

.006
.020
0.15
0.50
.004
.016
0.10
0.40
0603L035
.055
.071
1.40
1.80
.024
.039
0.60
1.00
.030
.061
0.75
1.55
.006
.020
0.15
0.50
.004
.016
0.10
0.40
0603L050
.055
.071
1.40
1.80
.024
.039
0.60
1.00
.030
.061
0.75
1.55
.006
.020
0.15
0.50
.004
.016
0.10
0.40
