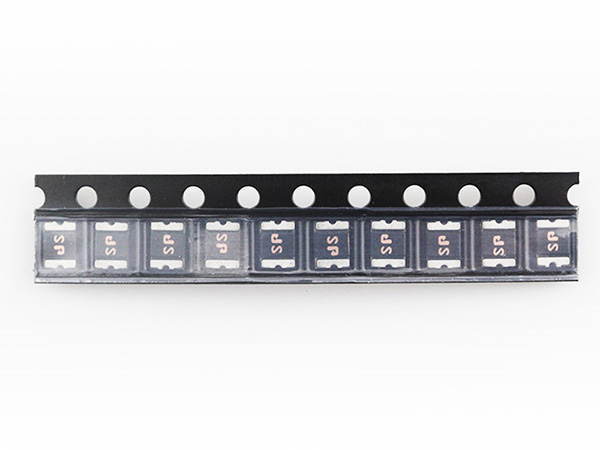

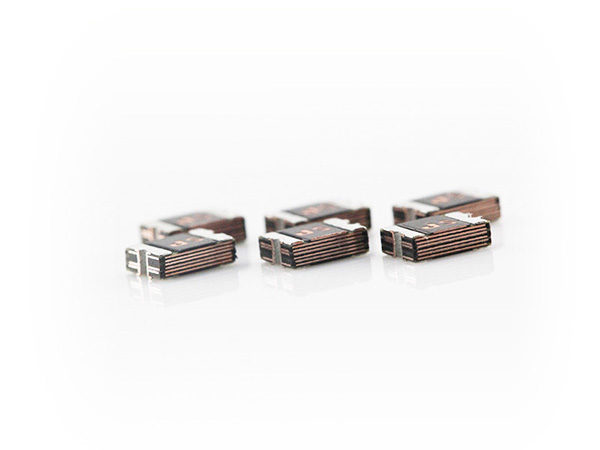

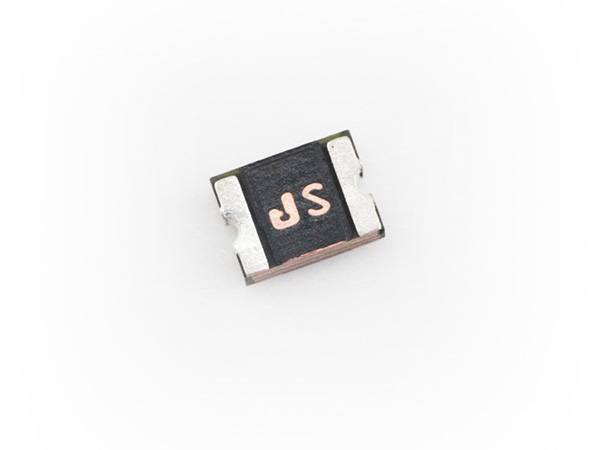

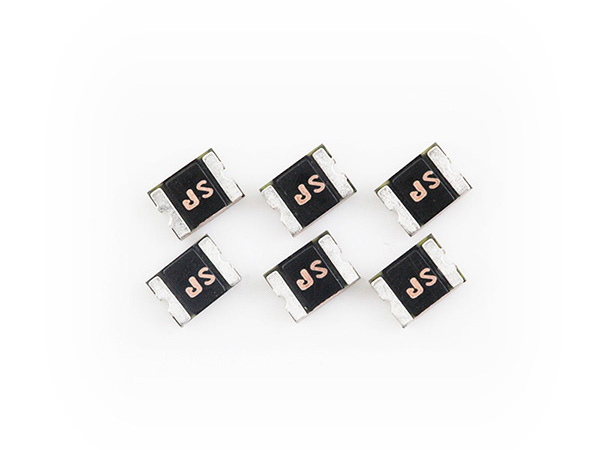

ASMD1210 PPTC Resettable Fuse

The ASMD1210 series provides surface mount
resettable overcurrent protection with holding current from 0.05A to 2.60A.
快赢v8 This series is suitable for wide range of applications in modern electronics where space is limited.

  • Brand： JDT FUSE
  • Classification： SMD PTC
  • Voltage： 6V-30V
  • Current： 0.05A-2A

Electrical properties


JDT FUSE
Vmax
(Vdc)
Imax
(A)
Ihold
@25℃
      (A)
Itrip
@25℃
      (A)
Pd
typ.
(W)
Maximum Time
To Trip
Resistance
Current
(A)
Time
(Sec.)
Rimin
(Ω)
R1max
(Ω)
ASMD1210-005
30.0
100
0.05
0.15
0.6
0.25
1.50
2.800
50.00
ASMD1210-005-13.2V
13.2
100
0.05
0.15
0.6
0.25
1.50
2.800
50.00
ASMD1210-005-60V
60.0
100
0.05
0.15
0.6
0.25
1.50
2.800
50.00
ASMD1210-010
30.0
100
0.10
0.30
0.6
0.50
0.60
0.800
15.00
ASMD1210-010-13.2V
13.2
100
0.10
0.30
0.6
0.50
0.60
1.600
15.00
ASMD1210-020
30.0
100
0.20
0.40
0.6
8.0
0.02
0.400
5.000
ASMD1210-020-13.2V
13.2
100
0.20
0.40
0.6
8.0
0.02
0.400
5.000
ASMD1210-020-16V
16.0
100
0.20
0.40
0.6
8.0
0.02
0.400
5.000
ASMD1210-035
6.00
100
0.35
0.75
0.6
8.0
0.20
0.200
1.300
ASMD1210-035-13.2V
13.2
100
0.35
0.75
0.6
8.0
0.20
0.200
1.300
ASMD1210-035-16V
16.0
100
0.35
0.75
0.6
8.0
0.20
0.200
1.300
ASMD1210-050
13.2
100
0.50
1.00
0.6
8.0
0.10
0.180
0.900
ASMD1210-050-24V
24.0
100
0.50
1.00
0.6
8.0
0.10
0.180
0.900
ASMD1210-075
6.00
100
0.75
1.50
0.6
8.0
0.10
0.070
0.400
ASMD1210-075-16V
16.0
100
0.75
1.50
0.6
8.0
0.10
0.070
0.400
ASMD1210-110
6.00
100
1.10
2.20
0.6
8.0
0.30
0.050
0.210
ASMD1210-110-12V
12.0
100
1.10
2.20
0.6
8.0
0.30
0.050
0.230
ASMD1210-150
6.0 0
100
1.50
3.00
0.6
8.0
0.50
0.030
0.110
ASMD1210-150-12V
12.0
100
1.50
3.00
0.6
8.0
0.50
0.030
0.110
ASMD1210-175
6.00
100
1.75
3.50
0.8
8.0
0.60
0.020
0.080
ASMD1210-200
6.00
100
2.00
4.00
0.8
8.0
1.00
0.015
0.070
ASMD1210-200-16V
16.0
100
2.00
4.00
0.8
8.0
1.00
0.015

0.07

ASMD1210-260
6.00
100
2.60
5.20
0.8
8.0
2.00
0.010
0.060



JDTFUSE

Model
A
B
C
D
E
Min.
Max.
Min.
Max.
Min.
Max.
Min.
Min.
ASMD1210-005
3.0
3.5
2.35
2.80
0.6
1.2
0.3
0.1
ASMD1210-005-60V
3.0
3.5
2.35
2.80
0.6
1.2
0.3
0.1
ASMD1210-010
3.0
3.5
2.35
2.80
0.6
1.2
0.3
0.1
ASMD1210-010-60V
3.0
3.5
2.35
2.80
0.6
1.2
0.3
0.1
ASMD1210-020
3.0
3.5
2.35
2.80
0.5
1.0
0.3
0.1
ASMD1210-020-60V
3.0
3.5
2.35
2.80
0.5
1.0
0.3
0.1
ASMD1210-035
3.0
3.5
2.35
2.80
0.5
1.0
0.3
0.1
ASMD1210-035-16V
3.0
3.5
2.35
2.80
0.5
1.0
0.3
0.1
ASMD1210-050
3.0
3.5
2.35
2.80
0.5
1.0
0.3
0.1
ASMD1210-050-24V
3.0
3.5
2.35
2.80
0.5
1.0
0.3
0.1
ASMD1210-075
3.0
3.5
2.35
2.80
0.5
1.0
0.3
0.1
ASMD1210-075-16V
3.0
3.5
2.35
2.80
0.5
1.0
0.3
0.1
ASMD1210-110
3.0
3.5
2.35
2.80
0.5
1.0
0.3
0.1
ASMD1210-110-12V
3.0
3.5
2.35
2.80
0.5
1.0
0.3
0.1
ASMD1210-150
3.0
3.5
2.35
2.80
0.5
1.2
0.3
0.1
ASMD1210-150-12V
3.0
3.5
2.35
2.80
0.5
1.2
0.3
0.1
ASMD1210-175
3.0
3.5
2.35
2.80
0.8
1.4
0.3
0.1
ASMD1210-200
3.0
3.5
2.35
2.80
0.8
1.4
0.3
0.1
ASMD1210-250
3.0
3.5
2.35
2.80
1.0
1.6
0.3
0.1
