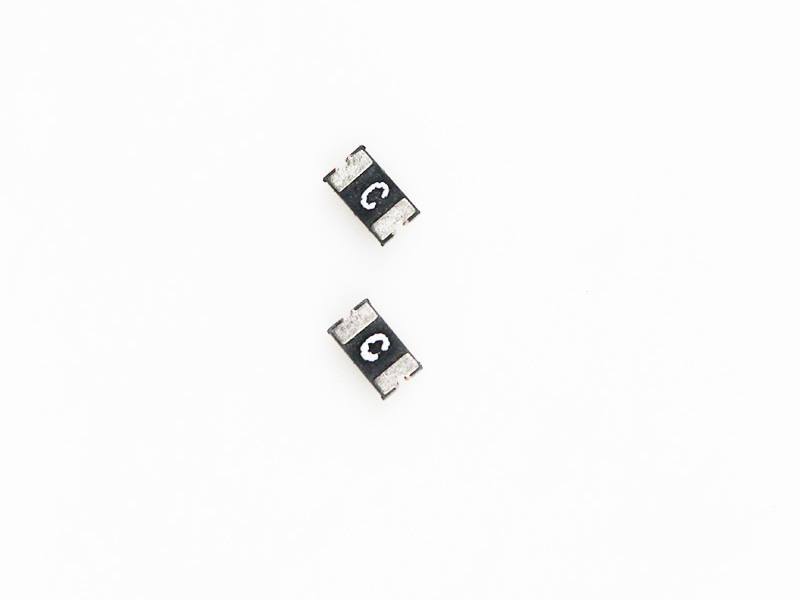

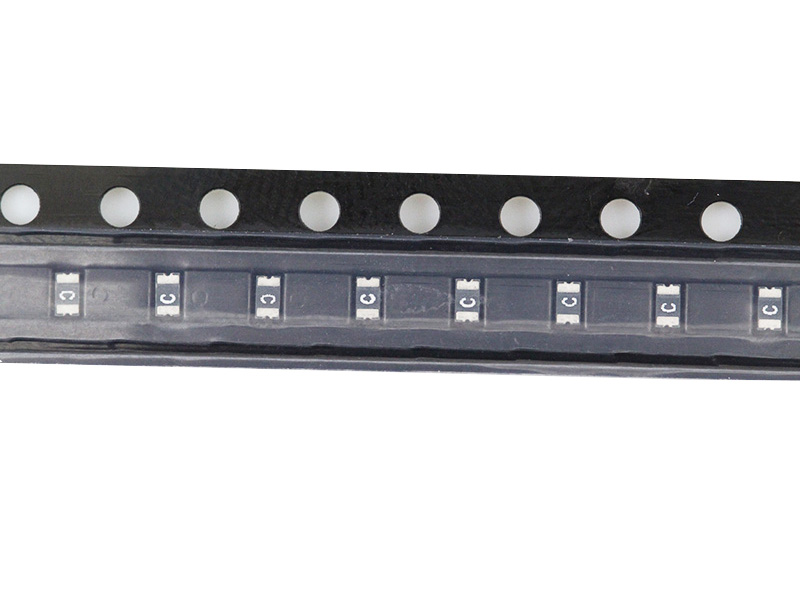

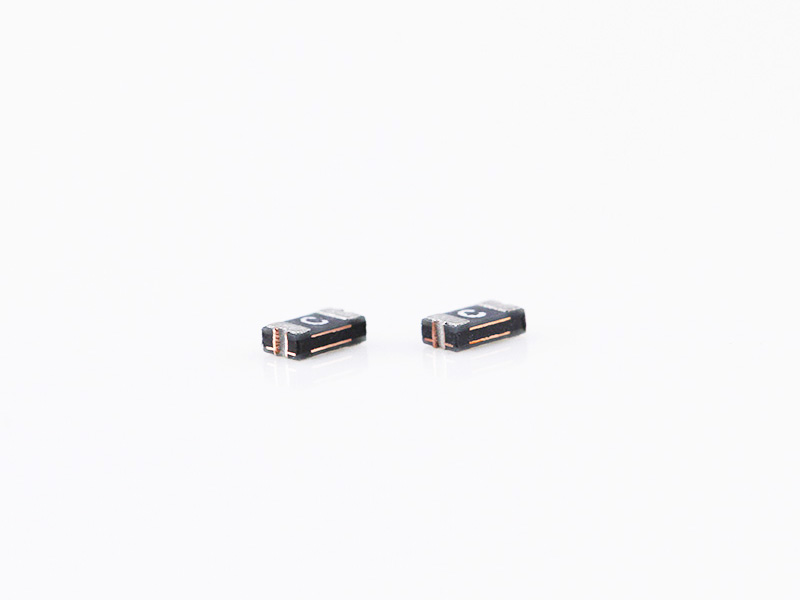

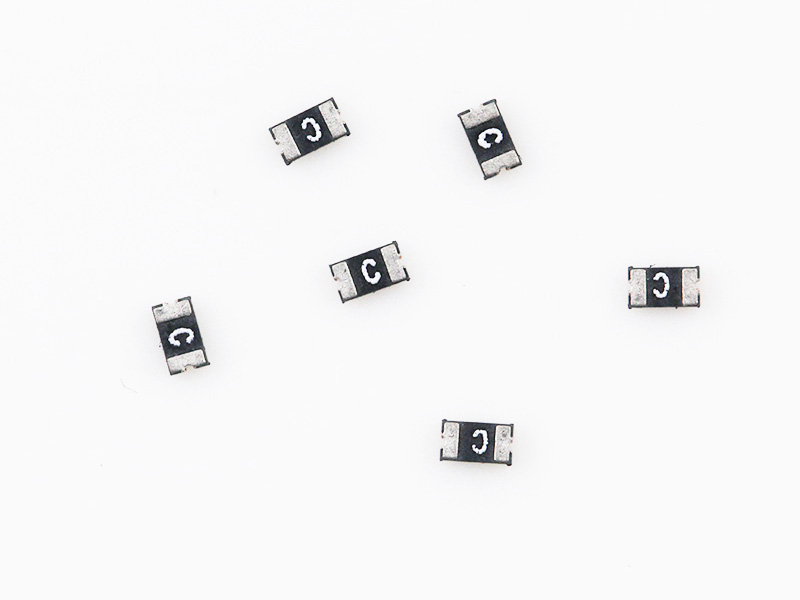

Littelfuse 0805L Series PTC

快赢v8The 0805L Series PTC provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.

  • Brand： Littelfuse
  • Classification： SMD Fuse
  • Voltage： 6V,9V,15V，24V
  • Current： 0.1A~1.1A

0805L Series Electrical Characteristics

Part Number
Marking
Ihold
(A)
Itrip
(A)
Vmax
(Vdc)
Imax
(A)
Pdtyp.
(W)
Maximum Time
To Trip
Resistance
Current
(A)
Time
(Sec.)
Rmin
(Ω)
R1max
(Ω)
0805L005/30f30.050.1530400.500.251.503.60020.000
0805L010
A
0.10
0.30
15
100
0.5
0.50
1.50
1.000
6.000
0805L010/24
J
0.10
0.30
24
100
0.5
0.50
1.50
1.500
6.000
0805L020
C
0.20
0.50
9
100
0.5
8.00
0.02
0.650
3.500
0805L035
E
0.35
0.75
6
100
0.5
8.00
0.10
0.250
1.200
0805L050
F
0.50
1.00
6
100
0.5
8.00
0.10
0.150
0.850
0805L075
G
0.75
1.50
6
40
0.6
8.00
0.20
0.090
0.350
0805L100
N
1.00
1.95
6
40
0.6
8.00
0.30
0.060
0.210
0805L110
H
1.10
2.00
6
100
0.8
8.00
0.10
0.050
0.160

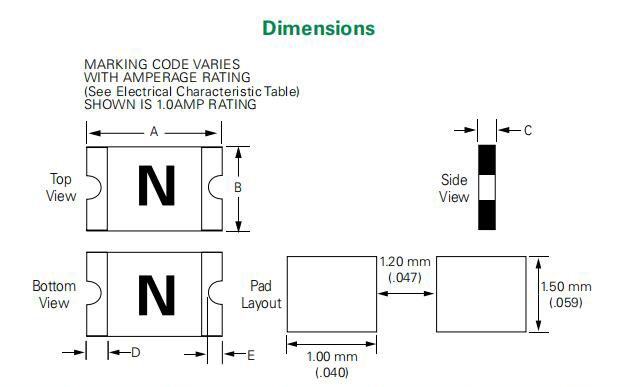

JDTFUSE

Part Number
A
B
C
D
E
Inch
mm
Inch
mm
Inch
mm
Inch
mm
Inch
mm
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
0805L005/30
0.08
0.09
2.002.200.050.061.201.500.030.050.751.250.010.020.200.550.0020.020.050.45
0805L010
0.080.092.002.200.050.061.201.500.020.040.551.000.010.020.200.550.0020.020.050.45
0805L010/24
0.080.092.002.200.050.061.201.500.020.040.551.000.010.020.200.550.0020.020.050.45
0805L020
0.080.092.002.200.050.061.201.500.020.040.551.000.010.020.200.550.0020.020.050.45
0805L035
0.080.092.002.200.050.061.201.500.020.030.450.750.010.020.200.550.0020.020.050.45
0805L050
0.080.092.002.200.050.061.201.500.030.050.751.250.010.020.200.550.0020.020.050.45
0805L075
0.080.092.002.200.050.061.201.500.030.050.751.250.010.020.200.550.0020.020.050.45
0805L100
0.080.092.002.200.050.061.201.500.020.070.501.800.010.020.200.550.0020.020.050.45
0805L110
0.080.092.002.200.050.061.201.500.030.060.801.400.010.020.200.550.0020.020.050.45
